Diamond T Torque Converter for Ford (1989-05) Gas Bronco, E-150/250/350, Expedition, Excursion, F-250/350/450/550 (E4OD/4R100 4 Stud)

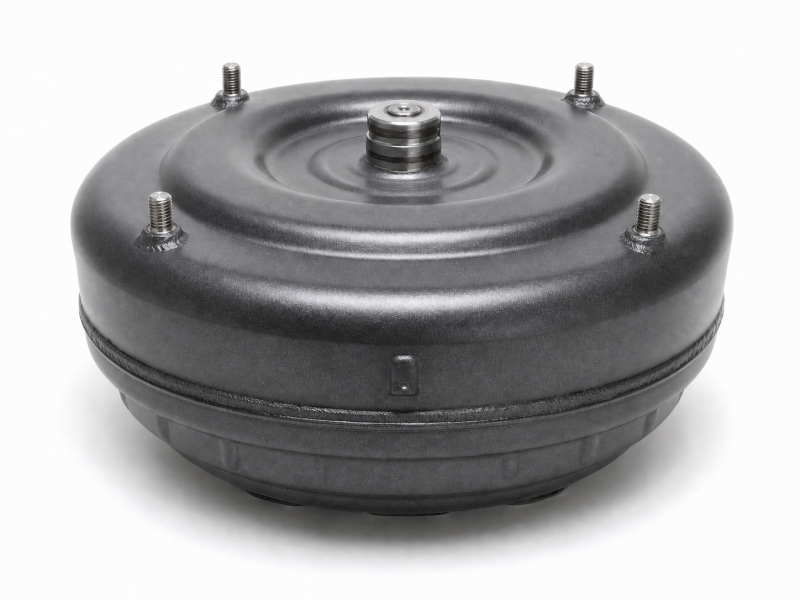

The Diamond T Torque Converter, Ford (1989-05) Gas Bronco, E-150/250/350, Expedition, Excursion, F-250/350/450/550 (E4OD/4R100 4 Stud) – FS89FLS is built as a direct replacement for the low-stall factory converters used behind a wide range of Ford gas engines in E4OD and 4R100 applications. With a 12-3/4" diameter, 31-spline input, 1.375" pilot (1-1/4" long), milled hub flats and an 11-3/8" 4-stud bolt circle, it matches the critical dimensions needed for proper fit and driveline alignment in these transmissions.

This converter is targeted at Ford gas platforms such as Bronco, E-150/250/350 vans, F-150/250/350 pickups, F-450/F-550 chassis cabs, Expedition, Excursion and Lincoln Navigator within the 1989-2005 model years using the E4OD or 4R100. It is intended to replace OEM units carrying part numbers like XL3Z-7902-BARM, XL3Z7902BARM, F81Z-7902-CARM and F81Z7902CARM, and covers common Ford identification codes L, N, R, W for these gas converters.

Stall speed is set to the same level as the factory low-stall calibrations used on specific gas engine packages, providing stock driving characteristics while maintaining the lower stall that many of these trucks and vans were originally equipped with. That means the converter behaves like an OE low-stall unit rather than a typical higher-stall gas converter, helping preserve the intended launch and towing feel for the engine and transmission combination.

To help ensure the customer receives the correct converter, Diamond T requires a VIN to be entered at the time of order. The VIN is used to verify fitment before shipping, adding an extra layer of protection against misapplication on the wide spread of Ford gas platforms covered by this part. Like every Diamond T torque converter, FS89FLS is built with a focus on reliability and real-world durability, backed by American-made quality— American Made, Because It Matters.

Common Fitment Includes:

• 1990 - 1996 Ford Bronco 4.9L
• 1989 - 2005 Ford E-100 Vans 4.9L, 5.4L
• 1989 - 2005 Ford E-150 Vans 4.9L, 5.4L
• 1997 - 1998 Ford E-150 4.2L, 4.6L
• 1997 - 2000 Ford E-250 4.2L, 5.4L
• 1997 - 2000 Ford E-350 6.8L, 5.4L
• 1989 - 2005 Ford F-150 4.9L, 5.4L
• 1997 - 2000 Ford F-150 4.2L, 4.6L
• 1989 - 2005 Ford F-250 6.8L, 7.5L
• 1997 - 1999 Ford F-250 4.6L, 5.0L, 5.4L, 5.8L
• 1999 - 2000 Ford F-250 Super Duty 5.4L
• 1997 Ford F-350 5.0L, 5.8L, 7.5L
• 1999 - 2000 Ford F-350 6.8L, 5.4L
• 1999 - 2000 Ford F-450 6.8L, 5.4L
• 1999 - 2000 Ford F-550 6.8L, 5.4L
• 2000 Ford Excursion 6.8L, 5.4L
• 1997 - 2000 Ford Expedition 4.6L, 5.4L
• 1998 - 2000 Lincoln Navigator 5.4L

Note: A valid VIN is required at checkout so Diamond T can verify the correct converter for your specific vehicle before shipping.
