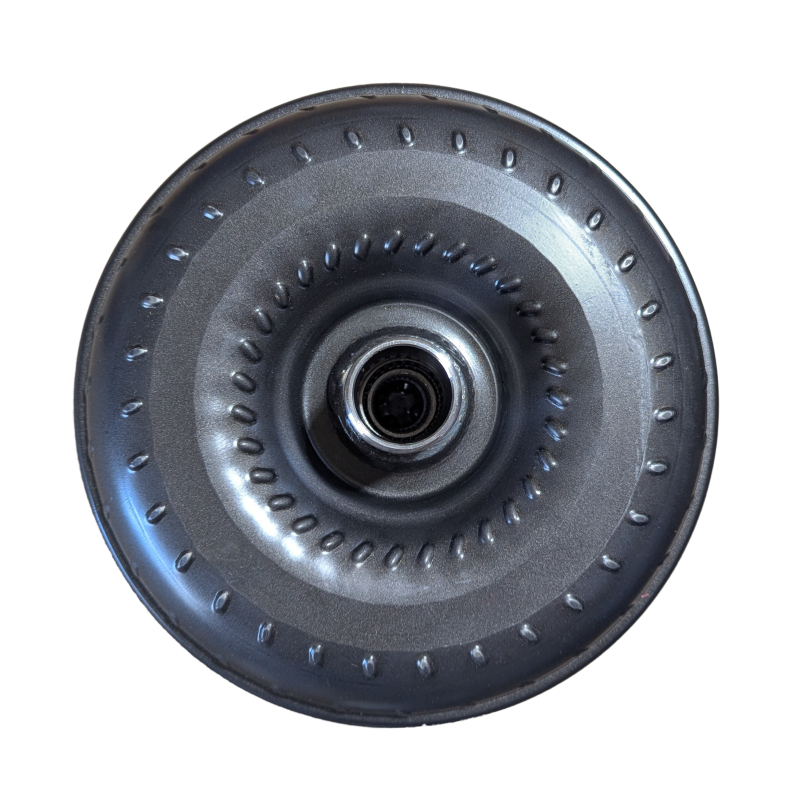

Torque Converter for Ford (2011-14) 3.5L EcoBoost & 5.0L 6R75/6R80 F-150

The Diamond T FD11G6RST torque converter upgrades your 2011-2014 Ford F-150 3.5L or 5.0L equipped with the 6R75 or 6R80 transmission. Precision machined and billet-built in the USA, this torque converter features a dual disk captive clutch for stronger lock-up, reduced heat, and smoother power delivery—whether you’re towing, tuned, or working your truck every day.

With a true 32 spline input, 27 spline stator, 12” diameter (converter is 12-11/16" @ widest point), 1.375" Pilot, 1.722" stepped & slotted hub, and a riveted mounting plate, it offers OE fitment with far superior holding power compared to stock converters. Each unit is precision balanced, fully quality tested, and ready to perform consistently under the most demanding conditions. 4 Stud Mounting with 10 x 1.0 Threads with a 11-3/8" Bolt Circle.

Diamond T torque converters are built in the USA to exacting standards and delivered with a lifetime warranty—ensuring confidence, reliability, and lasting value for every F-150 owner. Choose Diamond T: American Made, Because It Matters.


Converter ID #'s: BL3PAB, BL3PAC, BL3PAD, BL3PAE
